The M60 Machine Gun[]

The M60, officially the United States Machine Gun, Caliber 7.62 mm, M60, is a family of American general-purpose machine guns firing 7.62×51mm NATO cartridges from a disintegrating belt of M13 links. There are several types of live ammunition approved for use in the M60, including ball, tracer, and armor-piercing rounds. Introduced in 1957, it has served with every branch of the U.S. military and still serves with other armed forces. Its manufacture and continued upgrade for military and commercial purchase continues into the 21st century, though it has been replaced or supplemented in most roles by other designs, notably the M240 in U.S. service.

Overview[]

The M60 is a belt-fed machine gun that fires the 7.62×51mm NATO cartridge (.308 Winchester) commonly used in larger rifles. It is generally used as a crew-served weapon and operated by a team of two or three individuals. The team consists of the gunner, the assistant gunner (AG in military slang), and the ammunition bearer. The gun's weight and the amount of ammunition it can consume when fired make it difficult for a single soldier to carry and operate. The gunner carries the weapon and, depending on his strength and stamina, anywhere from 200 to 1000 rounds of ammunition. The assistant carries a spare barrel and extra ammunition, and reloads and spots targets for the gunner. The ammunition bearer carries additional ammunition and the tripod with associated traversing and elevation mechanism, if issued, and fetches more ammunition as needed during firing.

The M60 can be accurately fired at short ranges from the shoulder thanks to its design. This was an initial requirement for the design and a hold-over in concept from the M1918 Browning Automatic Rifle. It may also be fired from the integral bipod, M122 tripod, and some other mounts.

M60 ammunition comes in a cloth bandolier containing a cardboard box of 100 pre-linked rounds. The M60 uses the M13 ammunition link, a change from the older M1 link system with which it was not compatible. The cloth bandolier is reinforced to allow it to be hung from the current version of the feed tray. Historically, units in Vietnam used B3A cans from C-rations packs locked into the ammunition box attachment system to roll the ammunition belts over for a straighter and smoother feed to the loading port to enhance reliability of feed. The later models changed the ammunition box attachment point and made this adaptation unnecessary.

History[]

The M60 machine gun began development in the late 1940s as a program for a new, lighter 7.62 mm machine gun. It was partly derived from German guns of World War II (most notably the FG 42 and the MG 42), but it contained American innovations as well. Early prototypes, notably the T52 and T161 bore a close resemblance to both the M1941 Johnson machine gun and the FG 42] The final evaluation version was designated the T161E3. It was intended to replace the M1918 Browning Automatic Rifle and M1919A6 Browning machine gun in the squad automatic weapon role, and in the medium machine gun role. One of the weapons tested against it during its procurement process was the FN 42.

The U.S. Army officially adopted the T161E3 as the M60 in 1957. The decision to adopt the M60 instead of foreign designs, like modified versions of the proven German MG42 or the still-unproven FN MAG, was largely due to strict Congressional restrictions requiring preference be given to the designs of US arms manufacturers (even if a superior design was available from foreign sources) primarily out of desire to avoid paying licensing fees, but also out of a strong bias in favor of domestic products.

The M60 later served in the Vietnam War as a squad automatic weapon with many U.S. units. Every soldier in the rifle squad would carry an additional 200 linked rounds of ammunition for the M60, a spare barrel, or both. The up-gunned M113 armored personnel carrier ACAV added two M60 gunners beside the main .50 caliber machine gun, and the Patrol Boat, River had one in addition to two .50 cal mounts.

During the Vietnam War, the M60 received the nickname "The Pig" due to its bulky size. Vietnam's tropical climate harshly affected weapons, and the M60 was no exception. Its light weight made the gun damage easily and critical parts like the bolt and op rod wore out quickly. Even so, soldiers appreciated the gun's handling, mechanical simplicity, and effective operation from a variety of firing positions. Navy SEALs used M60s with shorter barrels and no front sights to reduce weight further. Some SEALs had feed chutes from backpacks to have a belt of thousands of rounds ready to fire without needing to reload.

In the 1980s, the M60 was partially replaced by the M249 Squad Automatic Weapon within Army infantry squads. Their new doctrine with the weapon reduced the general-purpose machine gun role in favor of portability and a greater volume of fire. Soldiers disliked the new strategy, as even though the lighter SAW made movement faster, in firefights the larger 7.62 mm round is preferred. In defensive roles, the M60 has better accuracy and a longer range to keep the enemy back. The M60 was retained in the vehicle mounted role and the general-purpose role due to its greater power and range compared to the 5.56 mm M249.

In U.S. Marine Corps service, concerns about the M60's reliability, weight, and the high round counts of many M60s in service prompted the adoption of the M60E3 to replace most original M60s in infantry units. The M60E3 was five pounds lighter than the original M60. It included a forward pistol grip and had the bipod mounted to the receiver rather than the barrel. The weapon still was not durable and its performance was reduced.

In the early 1990s, Saco addressed Navy Special Warfare requirements to develop a retrofit parts package for the machine gun. Called the M60E4, it was more reliable and durable than the M60E3, had a “duckbill” flash suppressor, and a shorter and thicker positive lock gas cylinder extension. NAVSPECWAR units began to receive it in late 1994, when it was designated the MK43 Mod 0.

A 19th Special Forces Group soldier mans an M60 machine gun on a Humvee in Afghanistan in March 2004. An AT4 anti-tank launcher can be seen in the foreground.

In January 1994, the U.S. Army began the Medium Machine Gun Upgrade Kit program. The only two competitors were M60 and M240 versions. Saco offered an "enhanced" M60E3 with product improved parts and FN offered its M240 coaxial gun with a buttstock, bipod, and other infantry features. As such, both weapons were upgrade kits of weapons already in service. Eighteen guns of each were tested until December 1995. There were two main performance areas: mean rounds between stoppages (MRBS-jams) and mean rounds between failures (MRBF-parts breaking). 50,000 rounds were fired through both guns. The M60 had 846 MRBS and 1,669 MRBF, compared to the M240's 2,962 MRBS and 6,442 MRBF. As a result, the M240 was declared the winner and accepted into infantry service. Although the M60 was lighter, had better balance, was more controllable, and there were many in the inventory, it did not work reliably enough.[9]

Starting with Ranger battalions, the U.S. Army began adopting and modifying M240 variants to replace their remaining M60s in the early 1990s. The M240 is several pounds heavier than the M60, and has a longer barrel and overall length, but it is more reliable in use and testing. However, the M60 uses a much simpler gas system that is easier to clean when care is taken during reassembly. This advantage is obviated since the gas tube is wired shut with lockwire to prevent the weapon from disassembling itself from vibration in hard use.

A sailor fires an M60E3 machine gun during a live-fire exercise at the Mobile Inshore Underwater Warfare Site (MIUW) at Guantanamo Bay, Cuba.

The M60 continues to be used in the 21st century by U.S. Navy SEALs and as a door gun on U.S. Army helicopters. It was the main 7.62 mm machine gun by some U.S. special operations forces to the late 1990s. As of 2005, it is used by the U.S. Coast Guard, U.S. Navy, and some reserve units. The M60 is generally being phased out.

Bgf

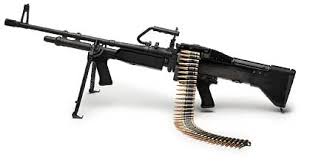

Machine Gun, 7.62 mm, M60

M60 machine gun

Type General-purpose machine gun
Place of origin United States of America
Service history
In service 1957–present
Used by See Users
Wars Vietnam War

Laotian Civil War
Cambodian Civil War
Cambodian–Vietnamese War

Salvadoran Civil War
The Troubles
Operation Just Cause
Persian Gulf War
War in Afghanistan
Iraq War
Cambodian–Thai border stand-off
Colombian armed conflict
Insurgency in the Philippines
Bougainville Civil War
2013 Lahad Datu standoff
various others

Production history
Designed Late 1940s–1957
Manufacturer Saco Defense

U.S. Ordnance

Unit cost $6,000[1]
Produced 1957–present
Variants See Variants
Specifications
Weight 10.5 kg (23.15 lb)
Length 1,105 mm (43.5 in)
Barrel length 560 mm (22.0 in)
Cartridge 7.62×51mm NATO
Caliber 7.62 mm (0.308 in)
Action Gas-operated, short stroke gas piston,[2] open bolt
Rate of fire 500–650 rounds/min (rpm)
Muzzle velocity 2,800 ft/s (853 m/s)
Effective firing range 1,200 yd (1,100 m)
Feed system Disintegrating belt with M13 Links
Sights Iron sights
